Leak Sensor
누액감지센서

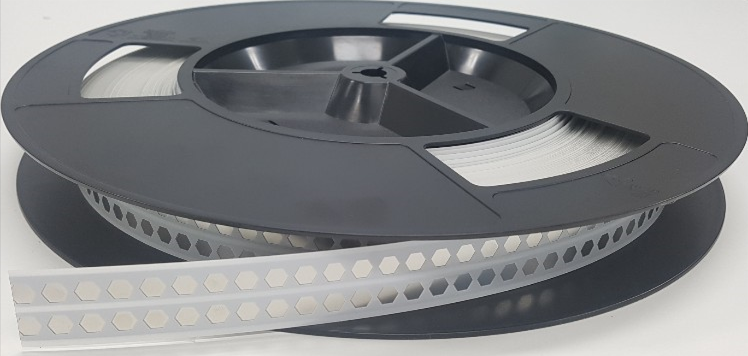

1) Metal Film Sensor
Leak Sensor prevent leakage by detecting leaks at industrial sites that may leak chemicals(Water, acid, alkali, etc.)
| Models | AMS-FFCS18 |
|---|---|
| Types | Phase separative type, Normal type |
| Sizes (mm) | 18(W) * X(L) * 0.6(H) |
| Controllers | IG/OD type controllers are available (compatible) |
| Detective chemicals | Acid, Alkali |
| Materials | PET insulating film, Anode/Cathode plates |
| Installation Length | Max. 10 m (Please contact to us in case of following conditions; completely soaking condition by water at outdoor, installation for a long distance) |
| Installation method | According to installation circumstances, use an high resistance tape to acid and brackets(model:AMS-SP-CV) to anchor |
| Cable length (Communication length) | Max. 200 m |
| Rated voltage /Current/Power consumption | 5 V(DC) / Max.250 mA/1.25 W |
| Leak/Brokenness detection time | t < 1 s |
| Models | AMS-FFCS26 |
|---|---|
| Types | Phase separative type, Normal type |
| Sizes (mm) | 26(W) * X(L) * 0.6(H) |
| Controllers | IG/OD type controllers are available (compatible) |
| Detective chemicals | Acid, Alkali |
| Materials | PET insulating film, Anode/Cathode plates |
| Installation Length | Max. 10 m (Please contact to us in case of following conditions; completely soaking condition by water at outdoor, installation for a long distance) |
| Installation method | According to installation circumstances, use an high resistance tape to acid and brackets(model:AMS-SP-CV) to anchor |
| Cable length (Communication length) | Max. 200 m |
| Rated voltage /Current/Power consumption | 5 V(DC) / Max.250 mA/1.25 W |
| Leak/Brokenness detection time | t < 1 s |
| Models | AMS-FFCS44 |
|---|---|
| Types | Phase separative type, Normal type |
| Sizes (mm) | 44(W) * X(L) * 0.6(H) |
| Controllers | IG/OD type controllers are available (compatible) |
| Detective chemicals | Acid, Alkali |
| Materials | PET insulating film, Anode/Cathode plates |
| Installation Length | Max. 10 m (Please contact to us in case of following conditions; completely soaking condition by water at outdoor, installation for a long distance) |
| Installation method | According to installation circumstances, use an high resistance tape to acid and brackets(model:AMS-SP-CV) to anchor |
| Cable length (Communication length) | Max. 200 m |
| Rated voltage /Current/Power consumption | 5 V(DC) / Max.250 mA/1.25 W |
| Leak/Brokenness detection time | t < 1 s |
| Models | AMS-FFCS-F15/F15W |
|---|---|
| Types | Phase separative type, Normal type |
| Sizes (mm) | 15(W) * X(L) * 0.8(H) |
| Controllers | IG/OD type controllers are available (compatible) |
| Detective chemicals | Acid, Alkali |
| Materials | Fluoropolymers, SUS |
| Installation Length | Max. 10 m (Please contact to us in case of following conditions; completely soaking condition by water at outdoor, installation for a long distance) |
| Installation method | According to installation circumstances, use an high resistance tape to acid and brackets(model:AMS-SP-CV) to anchor |
| Cable length (Communication length) | Max. 200 m |
| Rated voltage /Current/Power consumption | 5 V(DC) / Max.250 mA/1.25 W |
| Leak/Brokenness detection time | t < 1 s |
| Models | AMS-FFCS-LS-EX |
|---|---|
| Types | Inorganic/Organic Phase-Separating Sensor |
| Size(mm) | 26(W) * X(L)* 0.6(H) |
| Controllers | IG/NA Type controllers are available |
| Detective chemicals | Acid, Alkali, Solvent(Polar) |
| Materials | PETInsulated Film, SUS304 |
| Installation Length | Max. 20m (outdoorcompletefloodingconditions) |
| Installation method | According to installation circumstances, use an high resistance tape to acid and brackets(model:AMS-SP-CV) to anchor |
| Cable length | Max. 200 m |
| Rated voltage/ Current/Power consumption | 5V(DC) /Max.250mA |
| Leak/Brokenness detection time | t< 1s |

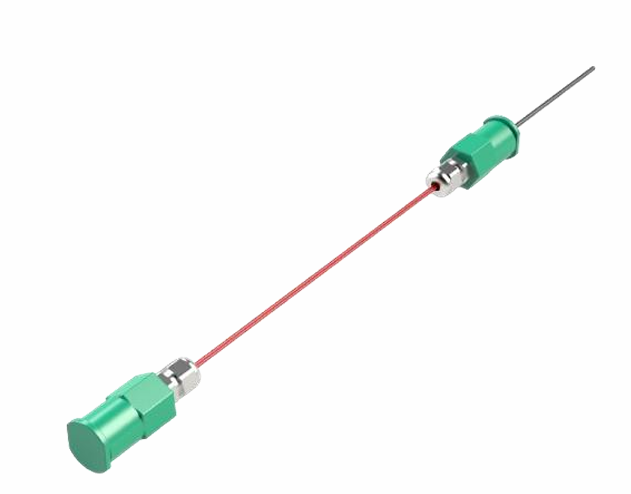

2) Line type Leak Sensor
| Models | AMS-FFCS-F03 |
|---|---|
| Types | Inorganic/Organic Phase-Separating Sensor |
| Size(mm) | PVDF Ø3, SUS Ø1 |
| Controllers | IG/NA Type Controller Available (Compatible) |
| Detective chemicals | Acid, Alkali, Solvent(Polar) |
| Materials | PVDF , SUS304 |
| Rated voltage /Current | 5V(DC) |
| Power consumption | Max.250mA |
| Leak/Brokenness detection time | Min. 1sec(directly configurable) |
3) Point Sensors

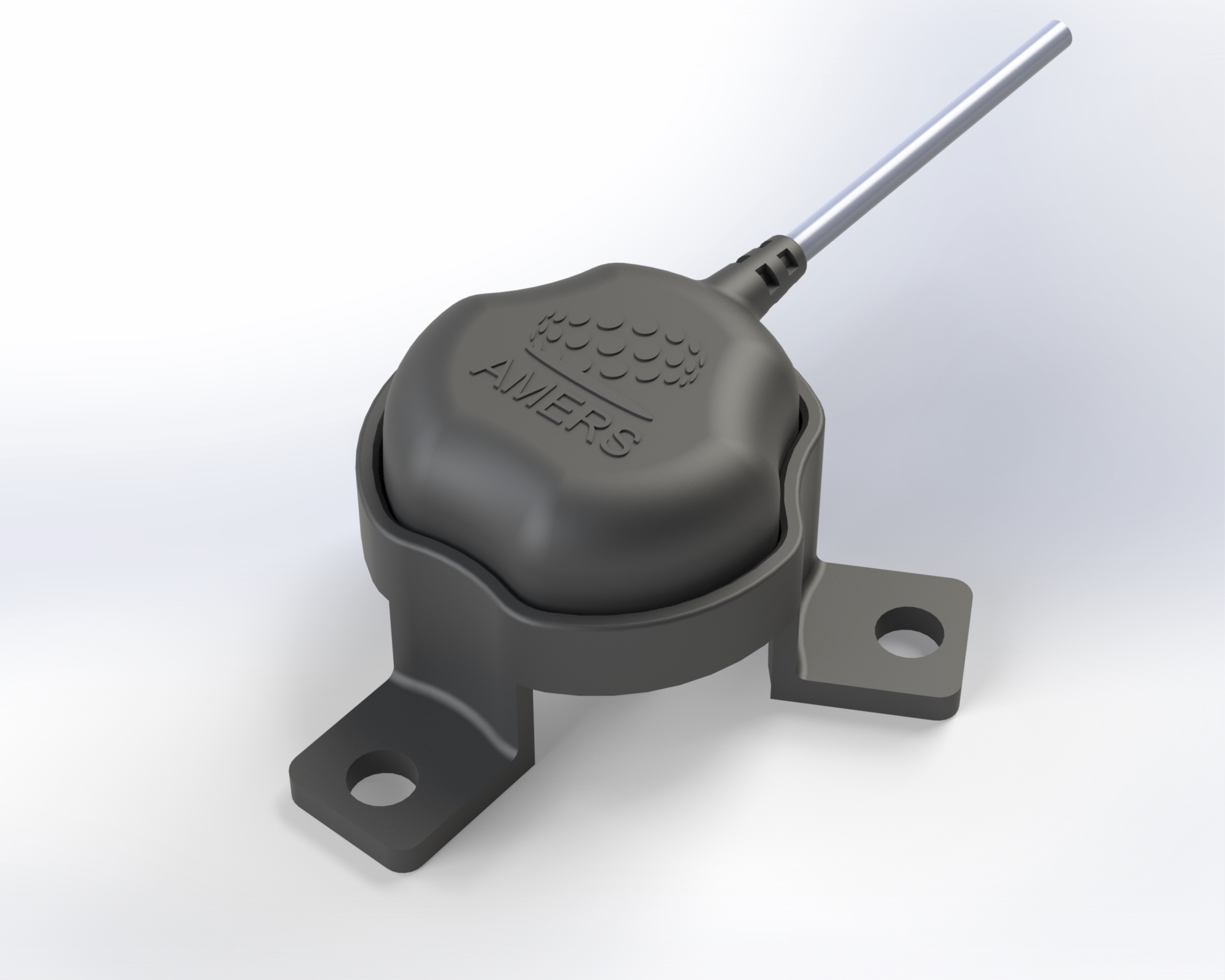

| Models | AMS-PS02-LS |
|---|---|
| Types | Sensor, Controller separative type |
| Sizes (mm) | Φ35*17 |
| Detective chemicals | Acid, Alkali |
| Materials | SUS, PVDF |
| Installation method | Installation of brackets |
| Cable length (Communication length) | Max. 100 m |
| Rated voltage /Current | 24±1 V(DC) ,< 40 ㎃ |
| Power consumption | MAX. 0.96 W |
| Temperature | -20 ℃ ~ 80 ℃ |
| Leak/Brokenness detection time | t < 1 s |
| Models | AMS-PS-EX |
|---|---|
| Types | Installable Point Sensor |
| Size(mm) | Φ35*17 |
| Controllers | IG/NA type controllers are available(compatible) |
| Detective chemicals | Acid, Alkali, Solvent(Polar) |
| Materials | SUS304, PVDF |
| Installation method | Installation of brackets |
| Cable length (Communication length) | Max. 100 m |
| Rated voltage/ Current/Power consumption | 24±1 V(DC) ,< 40 ㎃ |
| Power consumption | MAX. 0.96 W |
| Temperature | -20 ℃ ~ 80 ℃ |
| Leak/Brokenness detection time | t < 1 s |

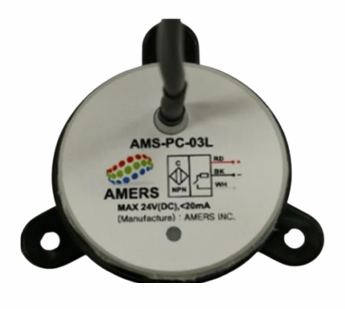

| Models | AMS-PC-03L |
|---|---|
| Types | Normal organic type, Point type(sensor integrated) |
| Sizes (mm) | Ø52 * H40 mm (without a bracket) |
| Detective chemicals | Organic solvents |
| Materials | PFA, PTFE |
| Rated voltage/Current | Max. 13 V (DC),< 20 ㎃ |
| Power consumption | 260 mW |
| Leak/Brokenness detection time | t < 30 s |
| Specifications for a communication | LED – output / Green – normal / Yellow – water detection / Red – organic chemicals detection Dry contact, A point contact(leak alarm) |
| Specifications for a wire | RED : DC+12 V / BLACK : 0 V / WHITE : leak alarm |
| Installation method | Using brackets |
| Models | AMS-PC-04L-EX(explosion prevention model) |
|---|---|
| Types | Normal organic type, Point type(sensor integrated) |
| Sizes (mm) | Ø52 * H40 mm (without a bracket) |
| Detective chemicals | Organic solvents |
| Materials | PFA, PTFE |
| Rated voltage/Current | Max. 13 V (DC),< 20 ㎃ |
| Power consumption | 260 mW |
| Leak/Brokenness detection time | t < 30 s |
| Specifications for a communication | LED – output / Green – normal / Yellow – water detection / Red – organic chemicals detection Dry contact, A point contact(leak alarm |
| Specifications for a wire | RED : DC+12 V / BLACK : 0 V / WHITE : leak alarm |
| Installation method | Using brackets |

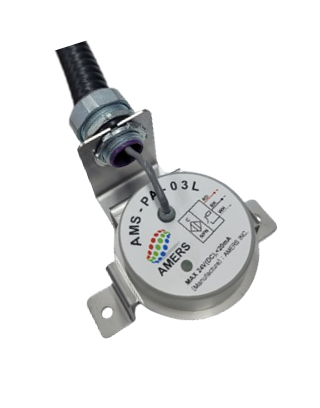

| Models | AMS-PA-03L |
|---|---|
| Types | Weapon Point Sensor(sensor integrated) |
| Sizes (mm) | Ø52 * H40 mm(excluding bracket) |
| Detective chemicals | Acid, Alkali, Solvent(Polar) |
| Materials | PFA, PTFE |
| Installation method | Installation of the fixing bracket ( additional pad installation is required if the floor of the installation site is made of conductive material) |
| Rated voltage /Current | 12~24±1V (DC) |
| Power consumption | max.0.48W |
| Temperature | -20℃ ≤ Ta ≤ +60℃, ≤ 90 %RH |
| Leak/Brokenness detection time | Within 10 seconds(changeable) |

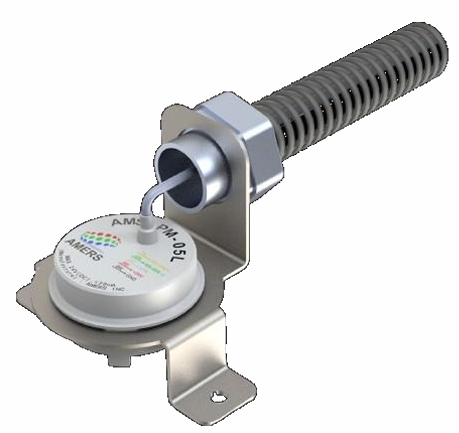

| Models | AMS-PM-05L |
|---|---|
| Types | Organic non/inorganic Point Sensor(sensor integrated) |
| Sizes (mm) | Ø52 * H40 mm(excluding bracket) |
| Detective chemicals | Organic non-polarity and Acid, Alkali, Solvent |
| Materials | PFA, PTFE |
| Installation method | Installation of the fixing bracket ( additional pad installation is required if the floor of the installation site is made of conductive material) |
| Rated voltage /Current | 12~24±1V (DC) |
| Power consumption | max.1.0W |
| Temperature | -20℃ ≤ Ta ≤ +60℃, ≤ 90 %RH |
| Leak/Brokenness detection time | Within 10 seconds(changeable) |
| Model | ACE-50 |
|---|---|
| Types | Capacitive Point Sensor |
| Sizes (mm) | Ø52 * H40 mm(excluding bracket) |
| Detective chemicals | Capable of detecting all liquids, including oil, solvent, acid, and alkali |
| Materials | PFA, PTFE |
| Installation method | Installation of the fixing bracket(additional pad installation is required if the floor of the installation site is made of conductive material) |
| Rated voltage /Current | 12~24V (DC),< 20㎃ |
| Power consumption | max.240~480mW |
| Temperature | -20℃ ≤ Ta ≤ +60℃, ≤ 90 %RH |
| Leak/Brokenness detection time | Within 10 seconds(changeable) |
| Models | AMS-PS-VH |
|---|---|
| Types | Embedded Point Sensor |
| Sizes (mm) | Ø44,h=50mm |
| Detective chemicals | Acid, Alkali, Solvent(Polar) |
| Materials | Polypropylene(PP), SUS304 |
| Installation method | PT 3/8"Entered |
| Rated voltage /Current | 5V±0.5V(DC) |
| Power consumption | max.0.5W |
| Temperature | -20℃ ≤ Ta ≤ +200℃, ≤ 90 %RH |
| Leak/Brokenness detection time | FollowAMS-HA-01M settings |
| Models | AMS-PA-VH1 |
|---|---|
| Types | Integrated Point Sensor |
| Sizes (mm) | Ø44,h=50mm |
| Detective chemicals | Acid, Alkali, Solvent(Polar) |
| Materials | Polypropylene(PP) |
| Installation method | PT 3/8"Entered |
| Rated voltage /Current | 12~24±1V(DC) |
| Power consumption | max.1.0W |
| Temperature | -20℃ ≤ Ta ≤ +60℃, ≤ 90 %RH |
| Leak/Brokenness detection time | Within 6 seconds |

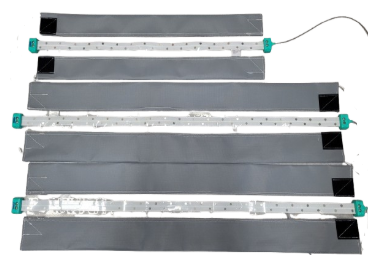

3) Film type Leak Sensors
| Models | AMS-FCC26 (Detachable type) AMS-FCC44 (Detachable type) AMS-FCA26 (All-in-one) AMS-FCA44 (All-in-one) |
|---|---|
| Types | Flange Cover Detachable type / All-in-one Metal Film Sensor |
| Size(mm) | ASM-FCC26: 26(W) * X(L)* 0.6(H) mm ASM-FCA26: 26(W) * X(L)* 0.6(H) mm AMS-FCC44: 44(W) * X(L)* 0.6(H) AMS-FCA44: 44(W) * X(L)* 0.6(H) |
| Controllers | IG/NA Type Controller Available (Compatible) |
| Detective chemicals | Acid, Alkali, Solvent(Polar) |
| Materials | PTFE, PFA, SUS304 |
| Rated voltage /Current | 5±0.5V (DC) |
| Power consumption | max.1.0W |
| Temperature | -20℃ ≤ Ta ≤ +200℃, ≤ 90 %RH |
| Leak/Brokenness detection time | Within 1 second |
