Sensor parts

악세서리

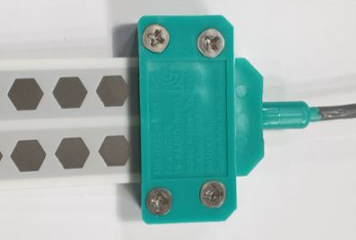

1) Start Connector

[Essential Parts] Connector for sensor to controller connection with Teflon wire 5M(1CH/1ea)

Model AMS-N-S26
Type Only AMS-FFCS 18 26 F15
Materials PP
Size(mm) 40*36*20

Model AMS-OD-STC
Type Only AMS-FFCS 44
Materials PP
Size(mm) 60*40*15

Model AMS-OD-STC-EX
Type Only FFCS-LS-EX
(Required for installation of explosion-proof areas)
Materials PP
Size(mm) 40*20*10

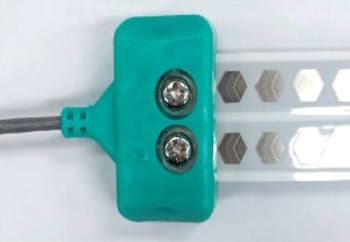

2) End Connector

[Essential Part] Used to check for cutting of sensor(broken) and disconnection from connector such as open circuit

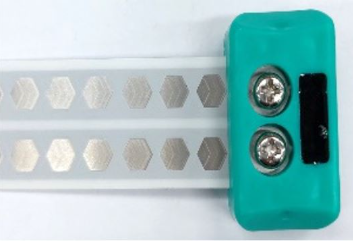

Model AMS-N-E26
Type Only AMS-FFCS 44
Materials PP
Size(mm) 42*25*20

Model AMS-OD-ENC
Type AMS-FFCS 44
Materials PP
Size(mm) 63*35*10

Model AMS-OD-ENC-EX
Type Only FFCS-LS-EX
(Required for installation of explosion-proof areas)
Materials PP
Size(mm) 40*20*10

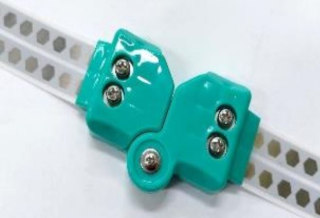

3)Corner connector

Model Corner connector
Type Only AMS-FFCS 18, 26 F15
Materials PP
Size 80*50*18(Middle connector use)
81*81*18(Corner connector use)

4) Bracket

[Essential Part] Bracket for sensor fixation

Model AMS-SP-CV-S
Type AMS-FFCS 26 / 18
Attactchment the non-slip pad
(Recommended use of 1EA bracket/1M of seonsor)
Materials SUS(Teflon coating)
Size 60*15*1(mm)

Model AMS-SP-CV
Type
Only AMS-FFCS 44
Attactchment the non-slip pad
(Recommended use of 1EA bracket/1M of seonsor)
Materials SUS(Teflon coating)
Size 60*30*3(mm)

5) Point Sensor Accessorie

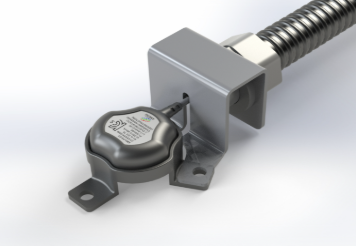

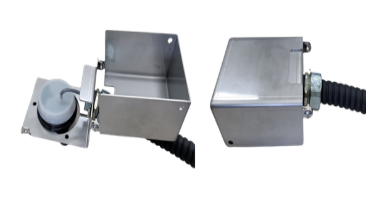

Model AMS-PS-CV2
Type Point Sensor Protection Cover
for indoor use
Only AMS-PS02-LS / AMS-PS-EX
Materials SUS
Size 83*62*42

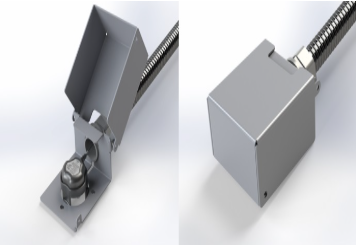

Model AMS-PS-CV-3
Type Point Sensor Protection Cover
for outdoor use
Only AMS-PS02-LS /AMS-PS-EX
Materials SUS
Size 80*90*52

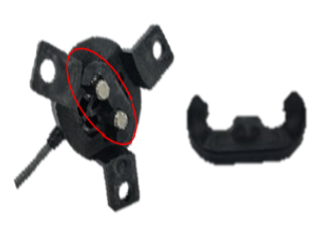

Model AMS-PS-ENC2
Type Broken alarm
Only AMS-PS02-LS /AMS-PS-EX
Materials PP
Size 23*10*4

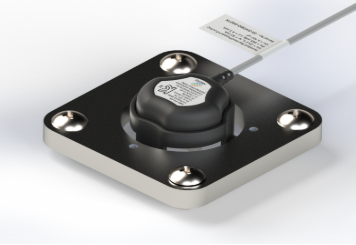

Model AMS-PS-HB
Type Field sensor fixing bracket where floor knife block work is not possible
Only AMS-PS02-LS /AMS-PS-EX
Materials SUS
Size 80*80*10T

Model AMS-PC-CV
Type Organic Point Sensor Protection Cover
Only AMS-PC-03L / AMS-PC-04L-EX
Materials SUS
Size 90*80*50

Model AMS-PC-CV
Type Point sensors Only ACE-50, PM-05L, PC-03L, PC-04L_EX
Materials SUS
Size 90*80*50
